| Machine Name – | Bridgeport
|
| Machine Model – | Series 1 interact S.n 22110985B |
| Description – | Heidhain TNC 150 control
Spindle Speeds 50-3750 rpm X travel 18 inch travel Y travel 12 inch travel Z travel 5 inch Table size 12.5 inch x 34 inch Coolant trays and pump
|
| Machine Name – | Cincinnati |
| Machine Model – | FTV-640/2500 |
| Descriptions – | Fanuc 18iMB
19kw spindle motor 8000RPM DIN 40 spindle taper X – Axis Travel 2500mm Y – Axis Travel 640mm Z – Axis Travel 770mm Nikken 4th Axis 36 station ATC Coolant pump Swarf conveyor |
| Machine Name – | Daewoo |
| Machine Model – | Ace V 400 s.n Av3sc262 |
| Descriptions – | Fanuc 18M
11kw spindle motor Bt 40 spindle taper Pallet/table Size 650 mm x 450mm X – Axis Travel 560mm Y – Axis Travel 400mm Z – Axis Travel 470mm 30 station ATC Coolant pump and conveyor
|
| Machine Name – | Dah lih |
| Machine Model – | MCV-1020BA S.n 3001040526 |
| Descriptions – | Fanuc 0i-MD
BT 50 spindle taper Max spindle speed 5000 RPM Geared head Table Size 1300 mm x 660mm X – Axis Travel 1020mm Y – Axis Travel 550mm Z – Axis Travel 560mm Nikken CNC260 4th axis 20 station ATC Thru spindle coolant Coolant pump and swarf augers Oil chiller
|
| Machine Name – | Edgwick
|
| Machine Model – | Manual Lathe
|
| Description – | 3 Jaw 9 Inch chuck
4 Jaw 10 inch chuck
12inch faceplate
Spindle speed 25RPM –1000 RPM Long travel 60 inch Cross travel 10 inch
4 way tool post
3 point work steadies Coolant trays and pump
|
| Machine Name – | Edwards
|
| Machine Model – | RV12 Vacuum pump |
| Description – | 230V Rotary vane vacuum pump
|
| Machine Name – | Excel
|
| Machine Model – | 1440E s.n 8407032 |
| Description – | 3 Jaw 6 inch chuck

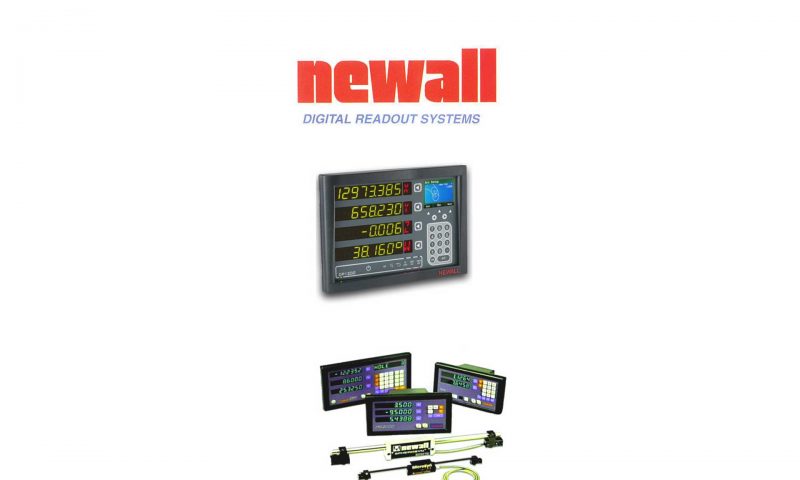

Spindle speeds 82-1400 rpm 1000mm between centres Coolant pump and tray ** Newall 2 axis Dro can be supplied with this machine at additional cost .
|
| Machine Name – | Gate |
| Machine Model – | Eclipse 460 S.n 021116030 (YOM 2002) |
| Description – | Anilam 4200T control
3 jaw chuck Spindle bore 65mm X axis travel 260mm Z axis travel 1650mm 7.5kw spindle Spindle speed 100RPM -4500 RPM Tool holders Coolant pump and tank Omf 1000 Extraction system
|
| Machine Name – | Gildemeister |
| Machine Model – | CTX 510 s.n 80439 431640
Yom 2005 |
| Description – | Heidhain plus IT
3 jaw SMW autoblock chuck X axis travel 300mm Z axis travel 1050mm Max swing 465mm Distance between centres 1000mm Spindle bore 102mm Spindle speed 3500RPM 12 station servo driven turret Assorted tool holders Renishaw toolsetter Coolant pump and tank Swarf conveyor
|
| Machine Name – | Haas |
| Machine Model – | SL30 S.n 67653(YOM 2006) |
| Description – | Haas control
3 jaw 10inch MMK chuck X axis travel 287mm Z axis travel 864mm Max swing 432mm Spindle bore 88mm Spindle speed 3400RPM 22KW spindle 12 station hydraulic turret Servo driven programable tailstock Assorted tool holders Toolsetter Coolant pump and tank Swarf conveyor
|
| Machine Name – | Haas |
| Machine Model – | Haas Vf3 Y.O.M 1996 |
| Descriptions – | 15kw spindle motor
Bt 40 spindle taper Table Size 1219 mm x 457mm X – Axis Travel 1016mm Y – Axis Travel 508mm Z – Axis Travel 635mm 4th axis 20 station ATC Coolant pump and swarf auger
|
| Machine Name – | Haas |
| Machine Model – | VF3 S.n 33935 |
| Descriptions – | 22kw spindle motor
Bt 40 spindle taper Table Size 1219 mm x 457mm X – Axis Travel 1060mm Y – Axis Travel 508mm Z – Axis Travel 635mm 4th axis 20 station ATC Coolant pump and swarf auger Also supplied with 20 tool holders and vice
|
| Machine Name – | Haas |
| Machine Model – | VF5 S.n 1076056
Year 2012 |
| Descriptions – | HAAS Control
BT 40 spindle taper 20HP Spindle Table Size 1321mm x 584mm X – Axis Travel 1270mm Y – Axis Travel 660mm Z – Axis Travel 635mm 20 station ATC Coolant pump and swarf auger
|
| Machine Name – | Harrison |
| Machine Model – | Alpha 400s Plus S.n S30074 |
| Description – | Ge Fanuc control
3 jaw 10 inch Pratt and Barnet manual chuck 10HP spindle Quick change tool post Tailstock Coolant Pump and tray 6 tool holders
|
| Machine Name – | Jones and shipman
|
| Machine Model – | 1400 s.n B074039 |
| Description – | Spindle Speed 2570 rpm
Hydraulic Powered Bed 24 inch x 7 inch table Long travel 25 inch Cross travel 8 inch Coolant system Extraction system Manual magnetic table |
| Machine Name – | Mega saw |
| Machine Model – | 360A s.n 990322 |
| Description – | Year 1999
3.7kw Main motor Semi- automatic 82- 250 FPM Variable speed control Max bar cutting size 460mm In-built coolant tank with pump and screw auger.
|
| Machine Name – | Mega saw |
| Machine Model – | 360A s.n 970431 |
| Description – | Year 1999
3.7kw Main motor Semi- automatic 82- 250 FPM Variable speed control Max bar cutting size 460mm In-built coolant tank with pump and screw auger.
|
| Machine Name – | Promach
|
| Machine Model – | UE-250 S.n 03114454 YOM 2003 |
| Description – | 2Hp Main motor
Blade speed 20-65 MPM Max cutting size 250mm In-build coolant tank and pump
|
| Machine Name – | Rivers |
| Machine Model – | LMS1 S.N 22966 |
| Description – | 10Inch Chopsaw
3 Phase 415V 2 speed saw 2000/4000 RPM
|
| Machine Name – | Suhner
|
| Machine Model – | DKM 6 s.n 490536 |
| Description – | 415v 3 phase motor
2.4Kw motor 2800 RPM flexible Rotary shaft grinder and polisher
|
| Machine Name – | Walton |
| Machine Model – | Guillotine UTG/40
( s.n 23020) |
| Description – | Treadle sheer guillotine
40 inch x 1.0mm (19G) Maxium cutting thickness
|
| Machine Name – | XYZ 410 |
| Machine Model – | XYZ 410 S.n 082 |
| Description – | Proto Trak LX2
10 inch 3 jaw chuck with 80mm spindle bore Distance Between Centres 1250mm 10 HP Spindle Motor 15 to 2300 RPM through a 3 speed gearbox Quick Change Toolpost Electronic hand wheels for manual operation 5 turning tool holders Coolant pump and tank
|
| Machine Name – | XYZ |
| Machine Model – | DPM s.n 9296 |
| Descriptions – | Spindle Speeds 70-3600 rpm
Spindle Taper ISO 40 Table Size 1372 x 355 mm X – Axis Travel 745mm Y – Axis Travel 500mm Z – Axis Travel 500mm Quill Travel 127mm Power Draw Bar Coolant pump Auto Lube System Low Voltage work Lamp Work vice also supplied with machine |
| Machine Name – | XYZ |
| Machine Model – | XYZ VM5000 |
| Descriptions – | Prototrak 3 axis VM control
X axis travel = 1524mm Y axis travel = 596mm Z axis travel = 584mm Table size=1930mm x 355mm 4000 rpm Spindle 7,5Kw spindle motor Power drawbar Work light Coolant pump Tooling Package |
